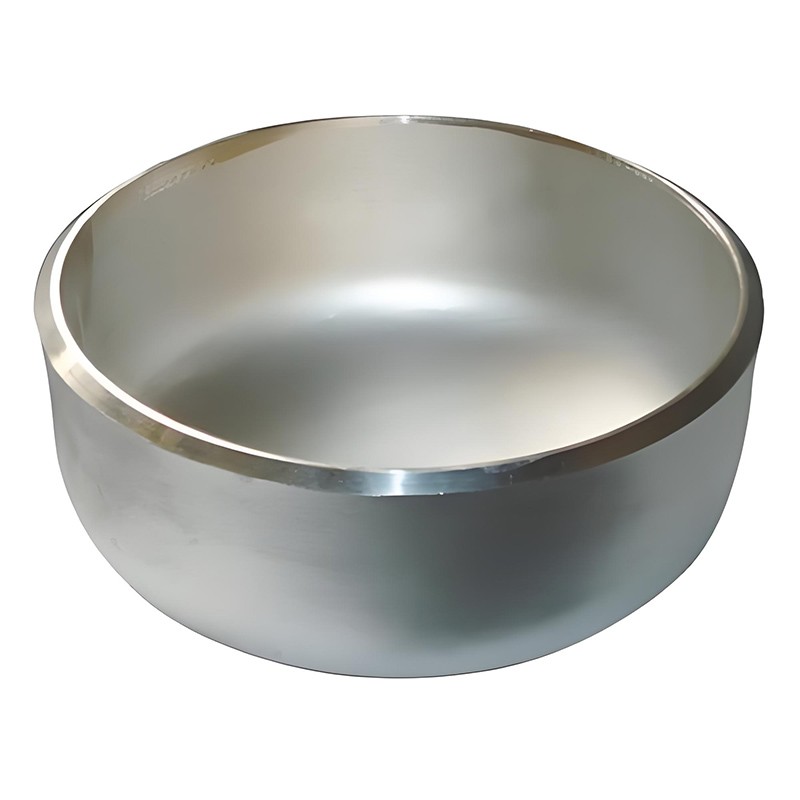

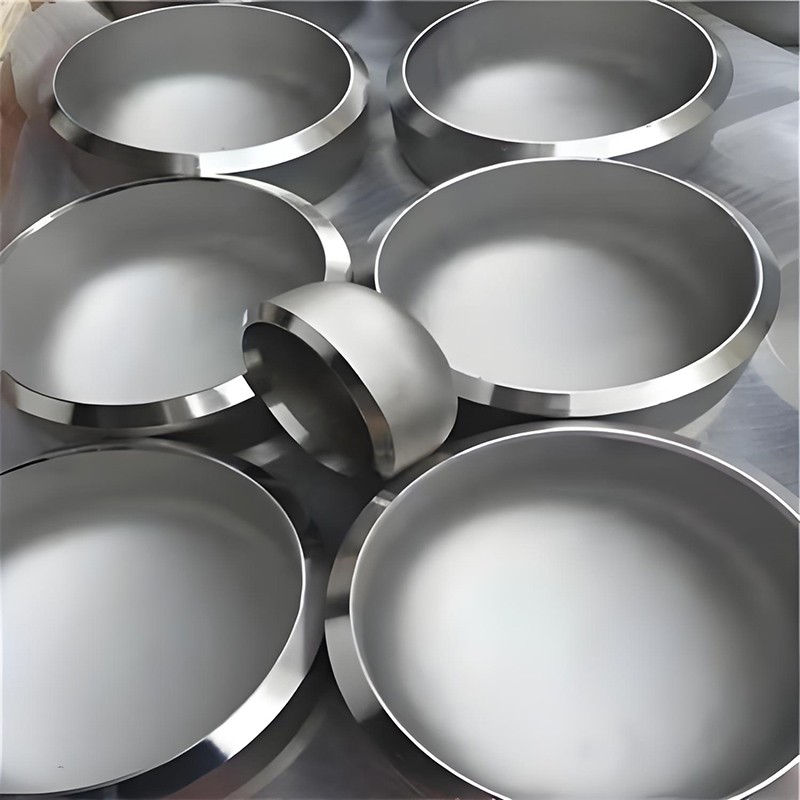

| DN10 (3/8 ") | DN15 (1/2 ") | DN20 (3/4 ") | DN25 (1 ") | DN40 (1-1/2 ") |
| DN50 (2 ") | DN80 (3 ") | DN100 (4 ") | DN125 (5 ") | DN150 (6 ") |
| DN200 (8 ") | DN250 (10 ") | DN300 (12 ") | DN350 (14 ") | DN400 (16 ") |
| DN450 (18 ") | DN500 (20 ") | DN550 (22 ") | DN600 (24 ") |
| Tamanho: | Sem costura 1/2 ″ -24 ″ (DN15-DN600) |
| Standra: | ASME B16.9, HT/T21631, MSS SP-43, DIN2605, JISB2313GB/T12459, GB/T13401, SH3408, HG/T21635 |
| Grossura: | SCH5-XXS |
| Nota: | TP304L, TP316L, TP310S, TP321, TP904L; DEPLEX S31803/F51, S32750/F53 |

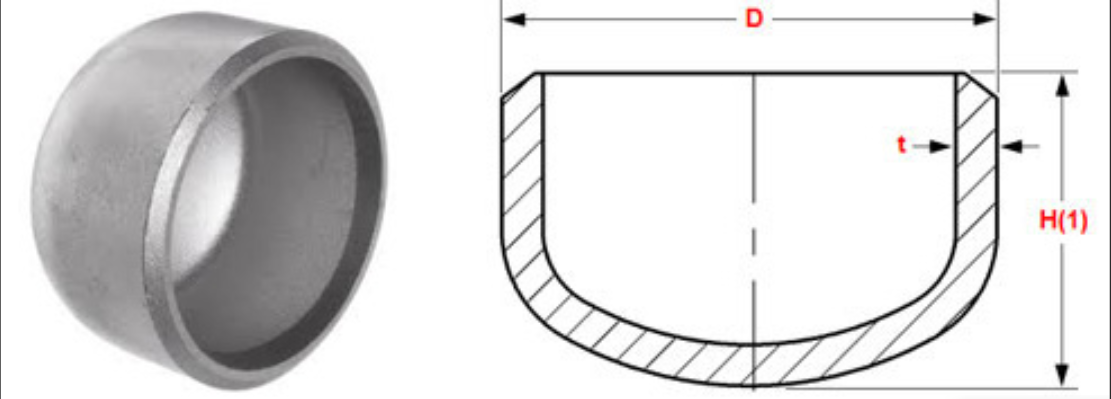

| Tamanho nominal | diâmetro externo em chanfrado | Comprimento | Limitando a espessura da parede para o comprimento e | ||
| Dn | NPS | DE | E | E1 |
|
| 15 | 1/2 | 21.3 | 25 | 25 | 4.57 |
| 20 | 3/4 | 26.7 | 25 | 25 | 3.81 |
| 25 | 1 | 33.4 | 38 | 38 | 4.57 |
| 32 | 1 ¼ | 42.2 | 38 | 38 | 4.83 |
| 40 | 1 ½ | 48.3 | 38 | 38 | 5.08 |
| 50 | 2 | 60.3 | 38 | 44 | 5.59 |
| 65 | 2 ½ | 73 | 38 | 51 | 7.11 |
| 80 | 3 | 88.9 | 51 | 64 | 7.62 |
| 90 | 3 ½ | 101.6 | 64 | 76 | 8.13 |
| 100 | 4 | 114.3 | 64 | 76 | 8.64 |
| 125 | 5 | 141.3 | 76 | 89 | 9.65 |
| 150 | 6 | 168.3 | 89 | 102 | 10.92 |
| 200 | 8 | 219.1 | 102 | 127 | 12.7 |
| 250 | 10 | 273 | 127 | 152 | 12.7 |
| 300 | 12 | 323.8 | 152 | 178 | 12.7 |
| 350 | 14 | 355.6 | 165 | 191 | 12.7 |
| 400 | 16 | 406.4 | 178 | 203 | 12.7 |
| 450 | 18 | 457 | 203 | 229 | 12.7 |
| 500 | 20 | 508 | 229 | 254 | 12.7 |
| 550 | 22 | 559 | 254 | 254 | 12.7 |
| 600 | 24 | 610 | 267 | 305 | 12.7 |
| 650 | 26 | 660 | 267 | ﹍ | ﹍ |
| 700 | 28 | 711 | 267 | ﹍ | ﹍ |
| 750 | 30 | 762 | 267 | ﹍ | ﹍ |
| 800 | 32 | 813 | 267 | ﹍ | ﹍ |
| 850 | 34 | 864 | 267 | ﹍ | ﹍ |
| 900 | 36 | 914 | 267 | ﹍ | ﹍ |
| 950 | 38 | 965 | 305 | ﹍ | ﹍ |
| 1000 | 40 | 1016 | 305 | ﹍ | ﹍ |
| 1050 | 42 | 1067 | 305 | ﹍ | ﹍ |
| 1100 | 44 | 1118 | 343 | ﹍ | ﹍ |
| 1150 | 46 | 1168 | 343 | ﹍ | ﹍ |
| 1200 | 48 | 1219 | 343 | ﹍ |
|
